Description

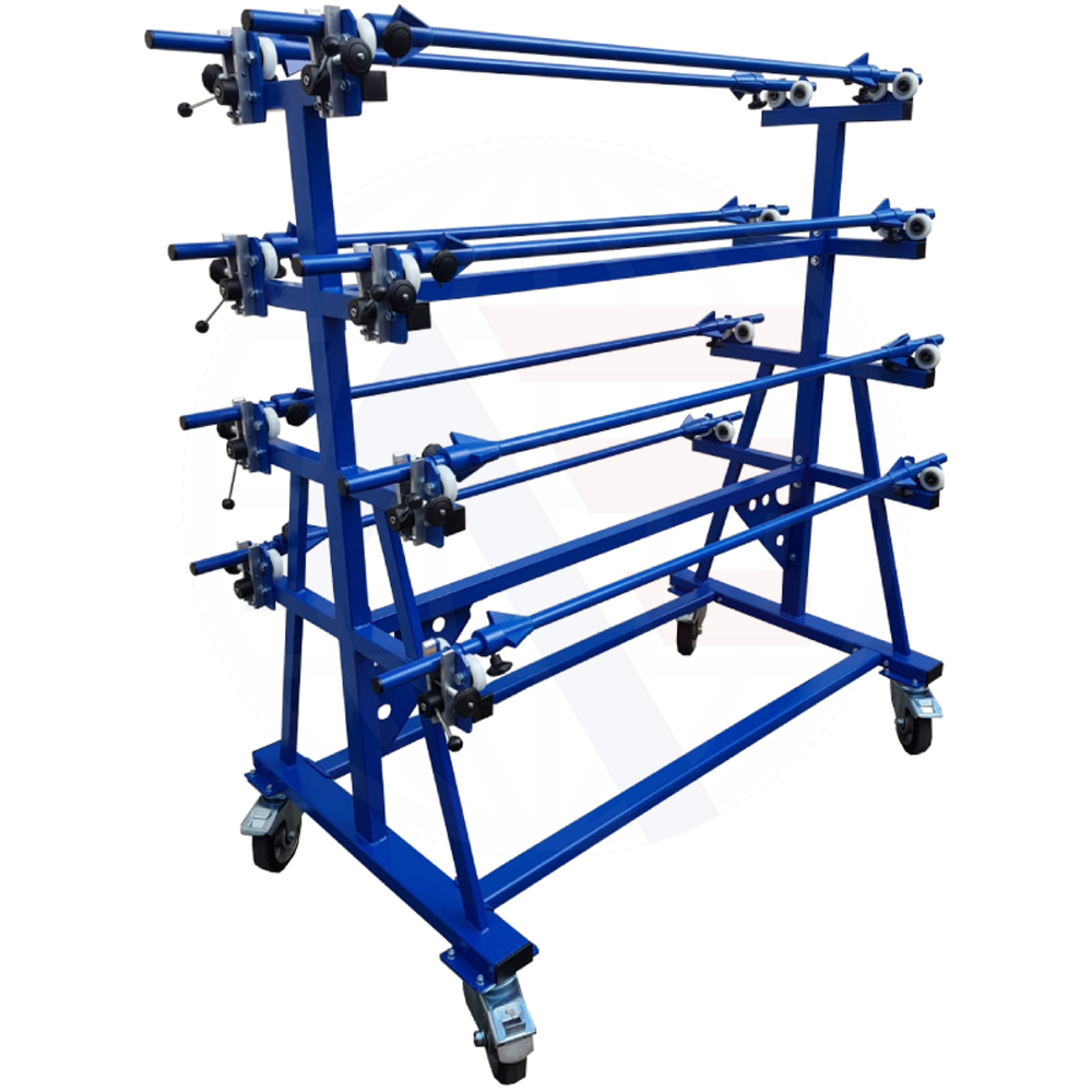

The Rexel LS-8 fabric unwinding unit was designed to store up to eight fabric rolls and it makes it possible to conveniently unwind fabric wound on a carton tube. The unwinding mechanism can be equipped with a brake as an additional option. The standard width of the construction allows for storage of fabric up to 1800 mm in width, but other widths are available on demand. The frame is made of powder-coated steel profiles.
Specifications
- Standard usable fabric width: 1800 mm (70.86”)
- Standard whole construction width: 2000 mm (78.74”)
- Optional fabric width range: 1000 - 2300 mm (39.37” - 90.55”)
- Optional construction width range: 1200 - 2500 mm (47.24 - 98.42)
- Maximum roll diameter: 250 mm (9.84”) (other diameters on request)
- Max. weight per fabric roll: 40 kg (88 lbs)
- Wheels: optional
- Roll brake system: optional
