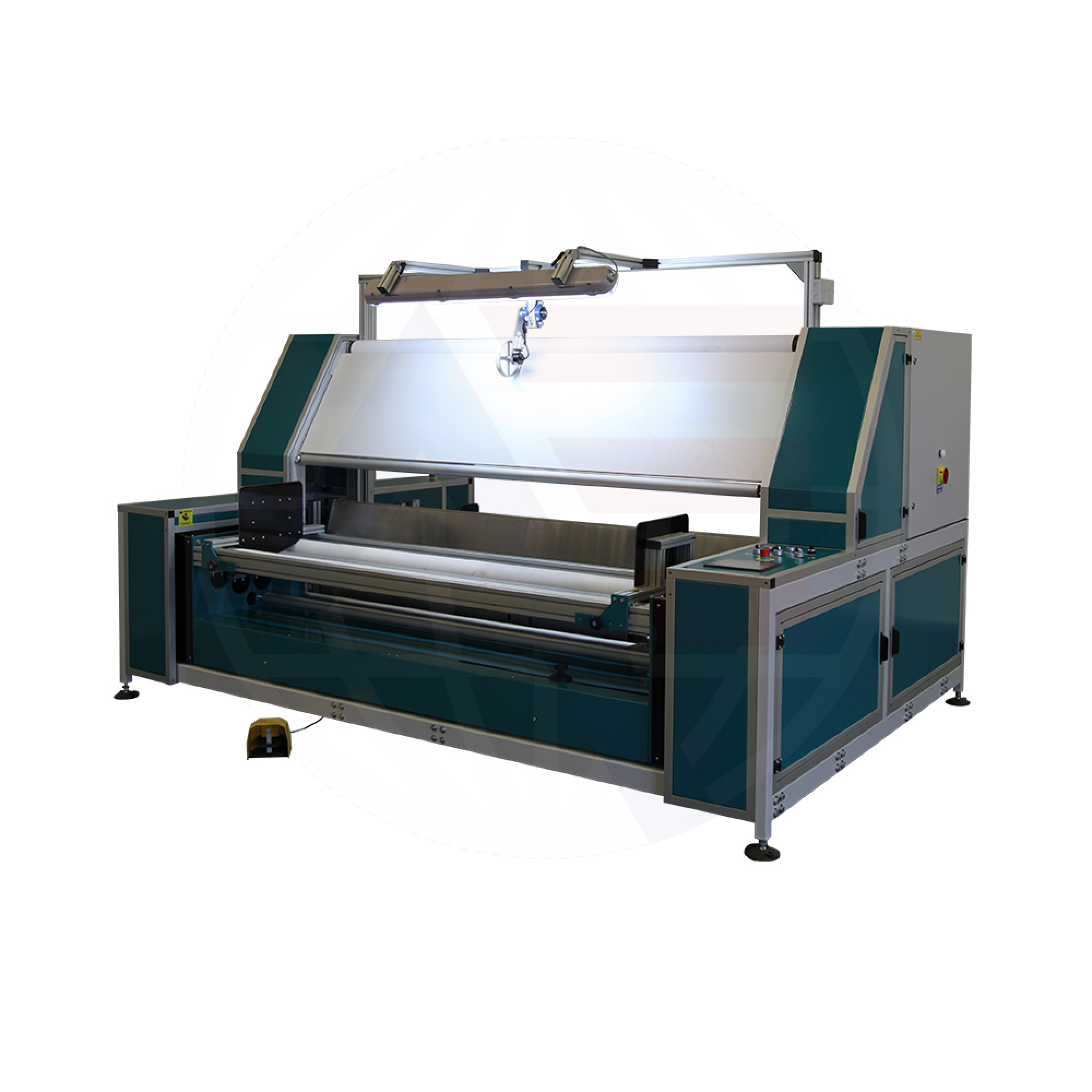

Rexel PP-5 Universal Inspection Machine

Key features:

• The machine is designed to rewind and inspect fabric on to a cardboard core.
• The machine is equipped with fabric edge sensor to ensure even rewinding.
• The machine is suitable for elastic and non-elastic materials.
• Top inspection light.
• The machine can be equipped with following options:
• Backlighting screen (PP-5/AE).
• Cutting knife semi-automatic OT-1/A or ULTRASONIC (PP-5/AE).
• Fabric feed is possible by:  Expanding airshaft for cardboard core, geared feed rollers or special "V" shape, geared conveyor belt cradle.
• Winding on to the cardboard core can be done on geared receiving rollers or expanding airshaft.
• Cut pieces can fall on special hanger, pile or on a roller conveyor.
• Control panel is equipped with high quality touchscreen.
• Easy to use touchscreen interface available in Polish, English and Russian (other languages on demand).

Specifications:

• Max. roll width: 2000 mm
• Max. roll diameter: 400 mm
• Max. roll weight: 80 kg
• Overall dimensions (LxWxH): 1980 mm x 3125 mm x 1920 mm
• Voltage: 230 V AC
• Power: 1.15 kW
